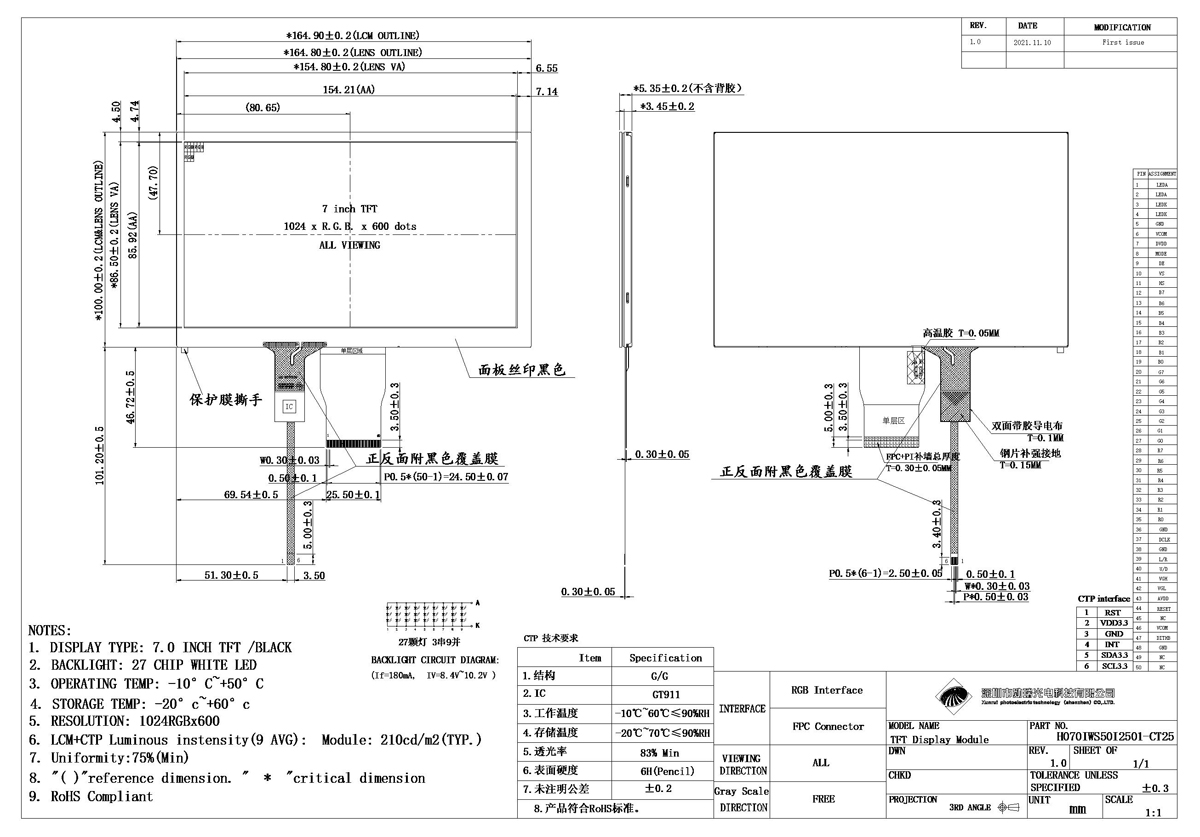

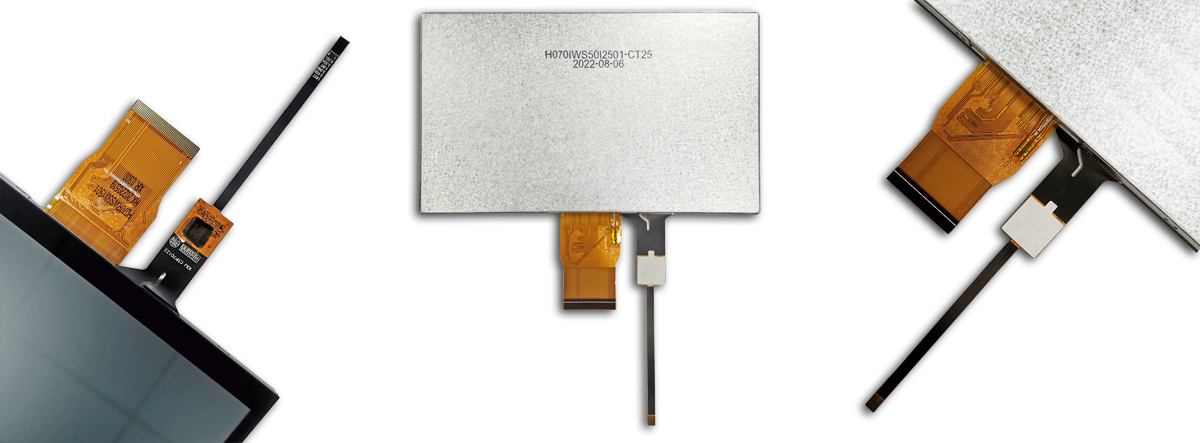

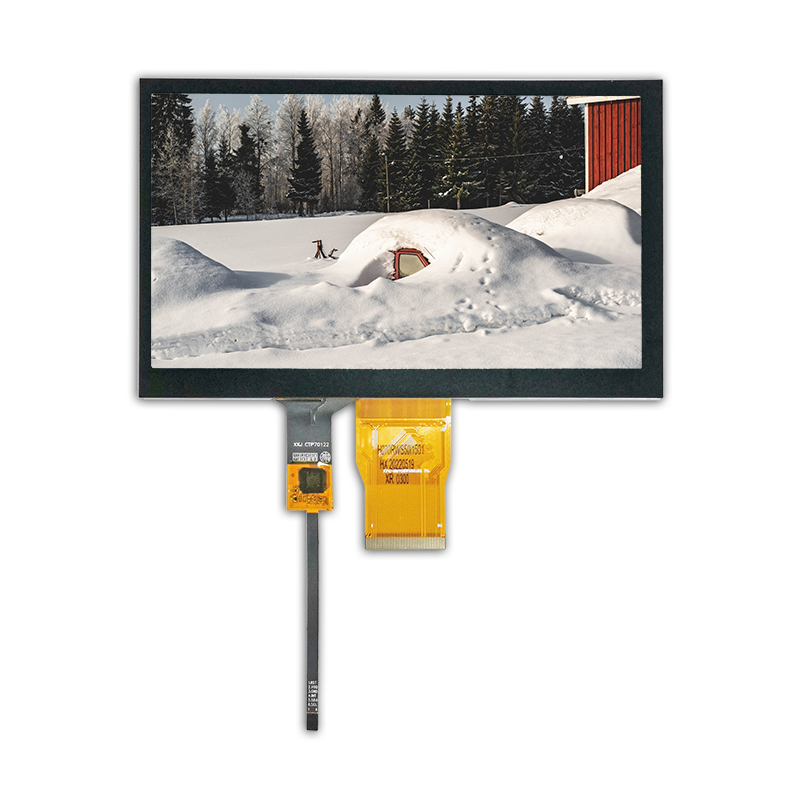

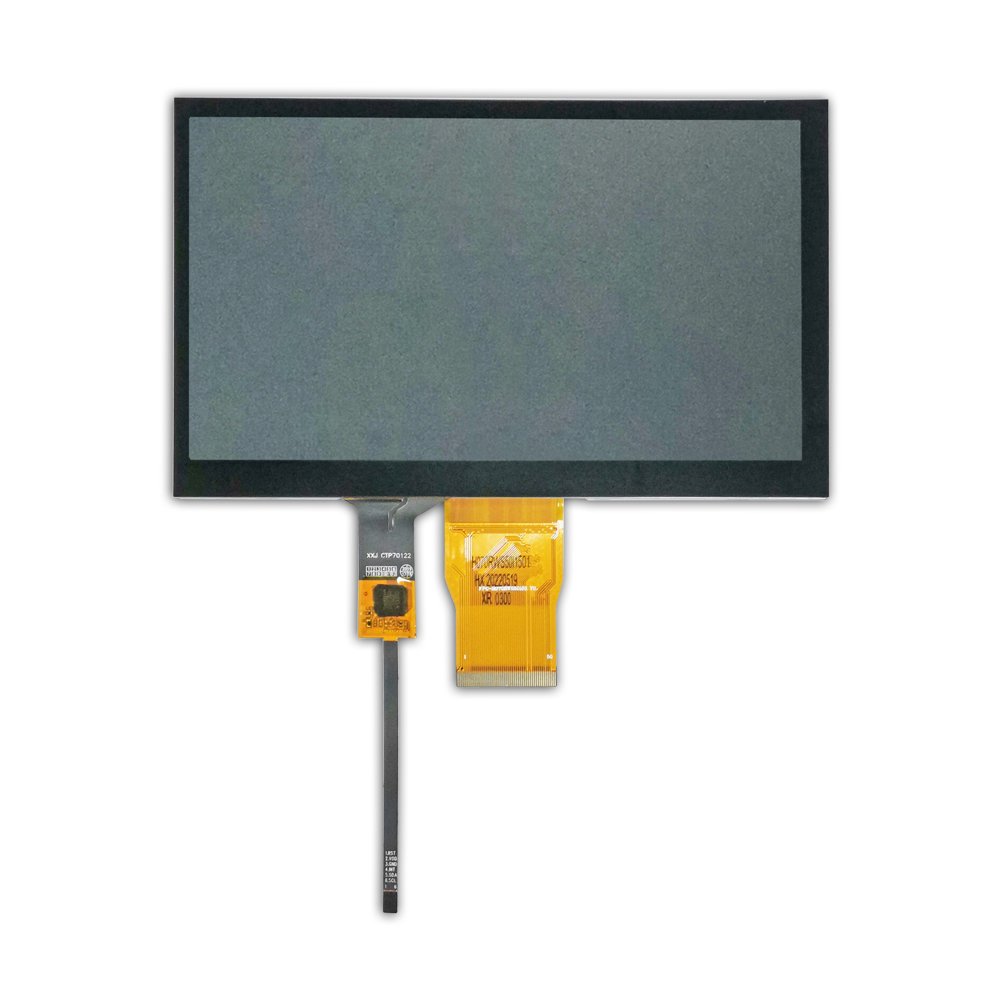

Resolution

1024(horizontal)*600(Vertical)

Interface

24-bit RGB

Connect type

Connector

Color Depth

16.7M

Technology type

a-Si

Display Spec.  Pixel pitch (mm)

0.1506 x 0.1432

Pixel Configuration

R.G.B. Vertical Stripe

Display Mode

Normally Black

Driver IC

HX8282/HX8696

Surface Treatment

HC

Viewing Direction

ALL

LCM+CTP (W x H x D) (mm)

164.9*100*5.35

Active Area(mm)

154.21*85.92

With /Without TSP

With  TSP

Weight (g)

TBD

LED Numbers

27 LEDs

1,2

LEDA

LED Anode

3,4

LEDK

LED Cathode

5

GND

Power Ground

6

VCOM

Common Voltage

7

DVDD

Power for Digital Circuit

8

MODE

DE/SYNC mode select

9

DE

Data Enable

10

VS

Vertical sync signal

11

HS

Horizontal sync Signal

12~19

B7~B0

Blue data

20~27

G7~G0

Green data

28~35

R7~R0

Red data

36

GND

Power Ground

37

DCLK

Pixel clock

38

GND

Power Ground

39

L/R

Left/right selection

40

U/D

up/down selection

41

VGH

Gate ON Voltage

42

VGL

Gate OFF Voltage

43

AVDD

Power for Analog Circuit

44

RESET

Global reset pin

45

NC

NO connection

46

VCOM

Common Voltage

47

DITHB

Dithering function

48

GND

Power Ground

49~50

NC

NO connection
